Carrera in an SE/30 – the code part 3

Leave a comment

Ahh, back in cosy main: – looks much easier now after that crazy MMU stuff in the previous part, right?

The next subroutine called is proc32. In the complete source code (reminder: Available at GitHub) I commented that with “works (get some RSC strings)“… and well, that sums it up pretty good.
proc32 loads (i.e. creates handles) from the resource-fork, e.g. the icons used in the menu-bar and several error-messages like “This application must run on the 68030 processor, please quit all other 68040 applications and re-run this application.“. That’s it. Boring…

That boredom instantly changes when we get to the next subroutine proc43located at 0x29DA…

I did it my way…

One fascinating thing about classic Mac OS is how easy it is to patch system calls, aka Toolbox traps. For example in the previous post we came about _BlockMove, which is a Toolbox call to copy an amount of RAM from A to B.
For example you have just read this article about a faster BlockMove method, you’re totally free to patch (read: replace) _BlockMove with your speedier version and automatically use this throughout your application – or even system-wide, if you’ve created an INIT…  [If you want to know all about it… here’s a book for you]

And that’s what proc43 heavily does. Because it’s a long subroutine (230 lines) so I will give you just one example – the inline comments should do…

2BE2:        MOVE    #$A02E,D0     ; BlockMove
2BE6:        _GetTrapAddress newOS ; (D0/trapNum:Word):A0\ProcPtr
2BE8:        MOVE.L  A0,$270(A5)   ; oldBlockmove
2BEC:        LEA     data42,A0     ; myBlockMove
2BF0:        TST.B   MMU32bit      ; loMem global "current address mode"
2BF4:        BNE.S   lae_70        ; skip if 32bit clean machine else
2BF6:        LEA     data43,A0     ; use a different entry for dirty machines
2BFA: lae_70 MOVE.L  A0,$274(A5)   ; save routine pointer to $274(A5)
2BFE:        LEA     data41,A0     ; DC.L 0000 0000
2C02:        MOVE.L  $270(A5),(A0) ; save oldBlockmove vector into there
2C06:        MOVE.L  #$A02E,D0     ; BlockMove
2C0C:        LEA     data40,A0     ; aaaand replace it by myBlockmove
2C10:        _SetTrapAddress newOS; (A0/trapAddr:ProcPtr; D0/trapNum:Word)

This is the sum up what else being done:

  • Save all debugger vectors into A5-world locations (suspicious. I sense Macsbug killing…)
  • Load the PACK4 resource, that’s the Floating Point emulation package (aka SANE) if no FPU found
  • Check & read several system Gestalt codes into A5-world (0x2AAC-0x2B44)
  • Patch several Toolbox traps
    • SwapMMUMode replaced by data19
    • VM_Displatch by data22
    • Pack4 by data10
    • Pack5 by data11
    • BlockMove by data40
    • jClearCache by myClearCache
    • GetNextEvent by myGetNextEvent
    • GetResource by myGetResource
    • SCSIdispatch by mySCSIdispatch
    • DrawMenuBar by myDrawMB
    • LoadSeg by data31
    • UnLoadSeg by data32
    • HWPriv by data33
    • vStdExit by data34

So far, so many.  Then there’s some RAM copying going on, of which I’m currently not quite sure what it is good for (0x2CAC-0x2CD8) 💡 .

Finally, the myShutdown routine is installed into the Shutdown Manager, i.e. it will executed before the Mac is powered down/restarting (it simply switches the host back to its own 68030). After that, RTS into main…

“There and back again…”

Barely back in main, a JSR 12(A6) warps us into MacII_4th, the last of the four handlers every supported system has.

This loads specific data from the FPSP into RAM (namely IDs 0x12C and 0x12D).
Finally a special floppy driver is installed (myFloppyDrvr @ 0x954) which IMHO just differs from the original in handling the ‘040 caches correctly. That was that and back to main…

The next sub-routine in line is chkATalkVer. I can rightfully name that routine because it’s short and crystal clear: Figure out if AppleTalk is installed, and if true, return its version in D0 (and also write it into A5-world). C’est ca…

This is the end…

It’s getting ugly (for now)… proc42 will be called – the last subroutine in main before my SE/30 crashes and burns  😥

The first few lines (0x28F4-0x293C) are comparably harmless. They are working around a bug in System 7.1 which was corrected in 2/17/92 according to some dark sources (“Corrected value of timeSCSIDB from 0DA6 to 0B24”).
After that, proc38 (0x293C) is called which again calls proc39 and something’s done with the TimeManager, not really sure what’s exactly going on, but it feels like a timing-benchmark heavily using InsTime, PrimeTime and RmvTime Toolbox calls.

[hold yer breath] Then we’re getting closer to the flat line… The stack is filled with these parameters:

2940:   CLR.L   -(A7)       ;PUSH.L 00000000
2942:   CLR.L   -(A7)       ;PUSH.L 00000000
2944:   CLR.L   -(A7)       ;PUSH.L 00000000
2946:   PUSH.L  #$80008000  ;       80008000
294C:   CLR.L   -(A7)       ;PUSH.L 00000000
294E:   PUSH.L  #64         ;       00000040
2954:   PUSH.L  #1          ;       00000001

and SpeedProc is called…

…To be continued 😉

P.S: I changed course (again) and started to investigate more into the C040’s hardware. The more I understand of the INIT/CP workings the more I can’t fight the idea that it really might be a hardware timing issue.

68000, Apple 68k, Carrera040

Carrera in an SE/30 – the code part 2

6 Comments

3rd handler

Next up is the 3rd handler, MacII_3rd: (0x3F94) in our case. Actually it’s called with JSR 8(A6), but that’s an 8 byte offset to the ‘base-address’ of any handler. Clever stuff, huh (Google for ‘pointer-table’)?

This subroutine contains serious magic and was a real hard nut to crack. Especially because it tricked me into believing that I’ve found the ‘crashsite’… which, to spoil the tension, isn’t.
It just kept on killing  Macsbug, because it’s so low-level.

What this routine does is replacing the Vector Base Register (VBR) which ‘lives’ at address 0x00000000. Evil stuff.

  • After disabling interrupts and switching to 32bit-mode a field with 6 long-words (data107) will be populated with data generated in other routines.
    For now I can only guess what these entries are (Values from my SE/30 given in brackets). We’ll discuss all that further down.
  • 0x3FC6 to 0x3FD8 calculates the size of the chunk of code starting at data106 (0x4008) to the beginning of MacII_4th (i.e. the end of Mac_3rd), which is 180 bytes.
  • Using this length, the routine first saves the current VBR onto the stack using the system call _BlockMove.
    Then the original VBR (+some more) will be replaced by the new version beginning at data106. (Killing Macsbug – more on that later)
  • BSR 53_cmd_1x is been called. This brings the Carrera040 into life most likely using the just copied VBR (This is discussed in much detail further down).
  • Now the contents of the stack (= copy of the original VBR) will be copied back into its place, this time using a classic DBRA loop (0x3FF4). My guess, no Toolbox call possible at the moment.
  • Adjust the stack, back to 16bit mode, restore Registers and return-from-subroutiene. Done.

Here’s the code doing all this:

3F94:MacII_3rd: MOVE    SR,-(A7)     ; 3rd call from MacII handler
3F96:           ORI     #$700,SR       ; Set bit 9-11 of SR (disable Interrupts)
3F9A:           MOVEM.L D0-D2/A0-A2,-(A7)
3F9E:           MOVEQ   #1,D0
3FA0:           _SwapMMUMode
3FA2:           PUSH.B  D0
3FA4:           SUBA.L  A2,A2         ; faster movea.l #0,a2
3FA6:           LEA     data107,A0    ; Filling the data into the 6x32 field
3FAA:           MOVE.L  96(A5),D0
3FAE:           MOVE.L  D0,(A0)+      ; SE30: 9FE00
3FB0:           LEA     data69,A1
3FB4:           MOVE.L  A1,(A0)+      ; SE30: 9D6E2 (User/Supervisor Rootpointer?)
3FB6:           MOVE.L  $64(A5),(A0)+ ; 807FC040
3FBA:           MOVE.L  $6C(A5),(A0)+ ; 807FC040
3FBE:           MOVE.L  $68(A5),(A0)+ ; 00000000
3FC2:           MOVE.L  $70(A5),(A0)+ ; 00000000
3FC6:           LEA     MacII_4th,A0
3FCA:           MOVE.L  A0,D2
3FCC:           LEA     data106,A0
3FD0:           SUB.L   A0,D2         ; 'distance' from data106 to MacII_4th
3FD2:           SUBA.L  D2,A7
3FD4:           MOVEA.L A2,A0
3FD6:           MOVEA.L A7,A1
	  	; save the current VBR to the stack
3FD8:           MOVE.L  D2,D0
	  	; A0 = SE30: 00000000 (src)  - IIci: $FBB08000
	  	; A1 = SE30: 027ff34c (dest) - IIci: $3BF9FC6
	  	; D0 = B4    (count)   - SAME on the IIci!
3FDA:           _BlockMove ; (A0/srcPtr,A1/destPtr:Ptr; D0/byteCount:Size)
	  	; write my own VBR...
                ; This copies 180 bytes into 0x000000000 replacing the original VBR.
                ; ... and kills Macsbug if not circumvented properly.
3FDC:           LEA     data106,A0
3FE0:           MOVEA.L A2,A1
3FE2:           MOVE.L  D2,D0
	  	; A0 = 9F900 (src)   - IIci 10C4EA (data88)
	  	; A1 = 00000 (dest)  - IIci FBB08000
	  	; D0 = B4    (count) - IIci same
3FE4:           _BlockMove ; (A0/srcPtr,A1/destPtr:Ptr; D0/byteCount:Size)
3FE6:           BSR     53_cmd_1x  ; Bring the C040 to life
3FEA:           MOVEA.L A7,A0  ; SP to A0
3FEC:           MOVEA.L A2,A1  ; SE30: 00000000
3FEE:           MOVE.L  D2,D0  ; the code length (B4 again)
3FF0:           BRA.S   lae_163
3FF2:   lae_162 MOVE.B  (A0)+,(A1)+ ; Write the VBR back from the stack
3FF4:   lae_163 DBRA    D0,lae_162
3FF8:           ADDA.L  D2,A7 ; adjust the stack
3FFA:           POP.B   D0
3FFC:           _SwapMMUMode
3FFE:           MOVEM.L (A7)+,D0-D2/A0-A2
4002:           MOVE    (A7)+,SR
4004:           MOVEQ   #0,D0
4006:           RTS

; Start of VBR replacement- and 040-Code being copied to 0x0 the by line 0x3FE4
; /if/ theses are the Vectors 0-17, then their meaning would be:

4008: data106:  DC.L    #$00001000 ; Reset initial Stack Pointer
400C:           DC.L    #$00000050 ; Reset initial Program Counter
; - ALL of these Vectors point to addr 4050 (offset 0x48) -
4010:           DC.L    #$00000048 ; Buserror
4014:           DC.L    #$00000048 ; Adress Error
4018:           DC.L    #$00000048 ; Illegal Instruction
401C:           DC.L    #$00000048 ; Zero Divide
4020:           DC.L    #$00000048 ; CHK, CHK2 instruction
4024:           DC.L    #$00000048 ; cpTRAPcc, TRAPcc, TRAPV instruction
4028:           DC.L    #$00000048 ; Privilige Violation
402C:           DC.L    #$00000048 ; Trace
4030:           DC.L    #$00000048 ; LINE 1010 Emulation
4034:           DC.L    #$00000048 ; LINE 1111 Emulation

; THESE are definitely no vectors, they are dynamically written by the code above
; and to be used to setup the 040 MMU registers.
4038: data107:  DC.L    #$0009FE00 ;
403C:           DC.L    #$0009D6E2;
4040:           DC.L    #$807FC040 ;
4044:           DC.L    #$807FC040 ; SE30:
4048:           DC.L    #$00000000 ; SE30: 00000000
404C:           DC.L    #$00000000 ; SE30: 00000000

4050:           CLR.L   $53000000  ; Poke 0 to $53000000
4056:           BRA     lae_164    ; This points to itself... I'm lost at the moment.
4058:           LEA     data107,A0 ; SE30: 9F900
405C:           MOVE.L  (A0)+,D1   ; SE30: 0009FE00 (User/Supervisor Rootpointer)
405E:           MOVEA.L (A0)+,A1   ; 0009D6E2
4060:           MOVE.L  (A0)+,D4   ; 807FC040
4062:           MOVE.L  (A0)+,D5   ; 807FC040
4064:           MOVE.L  (A0)+,D6   ; 00000000
4066:           MOVE.L  (A0)+,D7   ; 00000000
4068:           MOVE.L  #$C000,D0
406E$           MOVEC   D0,ITT0   ; Set Instruction Transparent Translation
4072$           MOVEC   D0,DTT0   ; Set Data Transparent Translation
4076$           MOVEC   D1,SRP    ; Set Supervisor Rootpointer
407A$           MOVEC   D1,URP    ; Set User Rootpointer
407E:           MOVE.L  #$C000,D0
4084$           PFLUSHA           ; Invalidates all entries in the address translation cache
4086$           MOVEC   D0,TC
408A:           LEA     data108,A0
408E:           ADDA.L  #$53002000,A0 ; (=0x530A1900)
4094:           JMP     (A0)      ; JuMP to data108 code (below) in C040 RAM range?

4096:  data108: MOVEQ   #0,D0
4098$           MOVEC   D0,ITT0
409C$           MOVEC   D0,DTT0
40A0$           MOVEC   D4,ITT0
40A4$           MOVEC   D5,DTT0
40A8$           MOVEC   D6,ITT1
40AC$           MOVEC   D7,DTT1
40B0$           CINVA   BC
40B2:           NOP
40B4:           MOVEQ   #0,D0
40B6$           MOVEC   D0,CACR
40BA:           JMP     (A1)    ; 0009D6E2

; END 040 Code being copied to somewhere by line 3FE4
40BC: MacII_4th: MOVEM.L D1-D7/A0-A4,-(A7)  ; 4th subroutine called my MacII_handler
[...]

The Vector Base Register

I wasn’t precise when I initially said “replacing the VBR”. What actually happens is that this routine uses what I’d call an interim-VBR for the moment it initializes the 68040 on the C040. You’ve probably saw the link referring to what the VBR is in the 1st post of this series, but let me go a bit more into detail.

The VBR is a list of addresses (aka vectors) the CPU refers to in case of an exception – and this is true for every 68k system out there, e.g. Mac, SUN, NeXT, Amiga or Atari. Some of them might do some relocation using their MMU, but even the virtual address will be 0x00000000 and the order is the same.  There are 16 basic vectors as listed here:

If for example a divide-by-zero happens, the CPU would call a handler which address is stored in 0x14.  Pretty simple.
So let’s have a look what MacII_3rd left in the VBR (and below that) when the ‘interim VBR’ is in place:

0000: data106:  DC.L    #$00001000 ; Reset initial Stack Pointer
0004:           DC.L    #$00000050 ; Reset initial Program Counter
     ; - ALL of these Vectors point to addr 0x48 -
0008:           DC.L    #$00000048 ; Buserror
000C:           DC.L    #$00000048 ; Adress Error
0010:           DC.L    #$00000048 ; Illegal Instruction
0014:           DC.L    #$00000048 ; Zero Divide
0018:           DC.L    #$00000048 ; CHK, CHK2 instruction
001C:           DC.L    #$00000048 ; cpTRAPcc, TRAPcc, TRAPV instruction
0020:           DC.L    #$00000048 ; Privilige Violation
0024:           DC.L    #$00000048 ; Trace
0028:           DC.L    #$00000048 ; LINE 1010 Emulation
002C:           DC.L    #$00000048 ; LINE 1111 Emulation
     ; - THESE are definitely no vectors, they are dynamically written by the
     ;   code above and to be used to setup the 040 MMU registers.
0030:  data107: DC.L    #$00000000 ; SE30: 0009FE00  (12)
0034:           DC.L    #$00000000 ; SE30: 0009D6E2  (13)
0038:           DC.L    #$00000000 ; SE30: 807FC040  (14)
003C:           DC.L    #$00000000 ; SE30: 807FC040  (15)
0040:           DC.L    #$00000000 ; SE30: 00000000
0044:           DC.L    #$00000000 ; SE30: 00000000

0048:           CLR.L   $53000000  ; Poke 0 to $53000000 ; C040 off
004C:  blocker3 BRA     blocker3    ; Points to itself... probably a "blocker"
0050:           LEA     data107,A0 ; initial Program Counter (SE30: 9F900)
0054:           MOVE.L  (A0)+,D1   ; SE30: 0009FE00 (User/Supervisor Rootpointer)
0058:           MOVEA.L (A0)+,A1   ; 0009D6E2
005C:           MOVE.L  (A0)+,D4   ; 807FC040
0060:           MOVE.L  (A0)+,D5   ; 807FC040
0064:           MOVE.L  (A0)+,D6   ; 00000000
0068:           MOVE.L  (A0)+,D7   ; 00000000
006C:           MOVE.L  #$C000,D0
0070:           MOVEC   D0,ITT0    ; Set Instruction Transparent Translation
0074:           MOVEC   D0,DTT0    ; Set Data Transparent Translation
0078:           MOVEC   D1,SRP     ; Set Supervisor Rootpointer
007C:           MOVEC   D1,URP     ; Set User Rootpointer
0080:           MOVE.L  #$C000,D0
0084:           PFLUSHA            ; Invalidates all entries in the address translation cache
0088:           MOVEC   D0,TC
008C:           LEA     data108,A0
0090:           ADDA.L  #$53002000,A0 ; (=0x530A1900)
0094:           JMP     (A0)       ; JuMP to data108 code (below) in C040 RAM range?

009C:  data108: MOVEQ   #0,D0
00A0:           MOVEC   D0,ITT0 ; 0
00A4:           MOVEC   D0,DTT0 ; 0
00A8:           MOVEC   D4,ITT0 ; 807FC040
00AC:           MOVEC   D5,DTT0 ; 807FC040
00B0:           MOVEC   D6,ITT1 ; 00000000
00B4:           MOVEC   D7,DTT1 ; 00000000
00B8:           CINVA   BC
00BC:           NOP
00C0:           MOVEQ   #0,D0
00C4:           MOVEC   D0,CACR
00C8:           JMP     (A1)    ; 0009D6E2
Farewell, old friend

At this point, my SE/30 always froze and I thought this must be the point where to find incompatibilities between the IIci and SE/30.
But after understanding, what’s really going on, it was clear that overwriting the TRAP exception (Nr.7), Macsbug was simply kicked out of the game as this exception is triggered after every step/trace you do in a debugger…
So to get beyond this point, I had to modify the program counter to skip the point where TRAP is copied-over… which is done inside the Toolbox’ _BlockMove call. So I had to single-step into that and find the right call/time to do a ‘pc=pc+2’ 😉 (Good thing you can define a macro for that).

Okayyyyy. After that’s been written, 53_cmd_1x is called, presumably telling the C040 to come to life.
And keen as it is, it’ll look up the “Reset initial Program Counter” (VBR: 0xC) and starts executing code from 0x50. Any other occurring exception will call the ‘handler’ at 0x48, simply switching the C004 off and sit in an endless loop (0x4C) – probably making the 68030 to take over again.

EmEmYou!

Given everything’s fine, the code at 0x50 will start reading the previously populated data from data107 into several registers.
Then some serious 68040 MMU table setup happens – so this is some kind of ‘040 initialization routine… and the ‘040 is actually running. Woohoo!

Time for some special register explanation:
As we all know, the 68040 has two in-build 4k caches and an MMU. The latter can be programmed how and what to cache. This is defined in 4 registers of which only 2 are of interest here: ITT0 and DTT0, the Instruction and Data Transparent Translation registers, both sharing the same bit-fields following this pattern:

BBBBBBBBMMMMMMMMESS000UU0CC00W00

  • B – Logical Address Base – compared with address bits A31-A24. Addresses that match in this comparison are transparently translated
  • M – Logical Address Mask – setting a bit in this field causes corresponding bit in Base field to be ignored
  • E – Enable Bit – 1 – translation enabled; 0 – disabled
  • S – Supervisor Mode – 00 – match only in user mode 01 – match only in supervisor mode 1x – ignore mode when matching
  • U – User Page Attributes – ignored by 040
  • C – Cache mode – 00 – Cacheable, Write-through 01 – Cacheable, Copyback 10 – Noncacheable, Serialized 11 – Noncacheable
  • W – Write protect – 0 – write permitted; 1 – write disabled

Here’s an example:

807FC040 = 10000000011111111100000001000000
           BBBBBBBBMMMMMMMMESS000UU0CC00W00

which means:

  • a bit less than 2GB transparently translated (2032MB)
  • translation enabled
  • Supervisor Mode: ignore mode when matching
  • Cache mode: Noncacheable, Serialized
  • Write permitted

So let’s have a look at the code again:

At 0x70/0x74 the MMU is set to 0xC000, i.e. Enable translation, apply for user & supervisor mode, write-though cache, for logical address space 0x80000000-0x00ffffff (2GB minus the bottom 16MB).
Then Supervisor & User Rootpointer are set to 0x9FE00, then the address translation cache is flushed to finally set the Translation Control register to Enable & 8K page size (0x88)… up to here this was pretty much ‘by the book’ of how to set-up MMU tables.

Having its MMU all set, the 68040 now gets something to chew on:
The address of data108 is added to 0x53002000 and jumped to!
💡  Does 0x53002000 equal 0x00000000 for the C040?

Let’s assume the C040 executes the code at data108 for now. That is:

  • Clear the ITT/DTT registers
  • Set the MMU to 0x807FC040 (see decoding example above)
  • invalidate caches and wait’a’NOP to have that happened
  • then disable all caches
  • and jump to where A1 points to. In my SE/30 that’s 0x9D6E2, previously loaded from data107 in 0x58

Writing all this from the top of my head, I’m not 100% sure where this address is pointing to. I must be somewhat back into MacII_3rd (0x3FEA), because this is where the program execution resumes (Need to check this with Macsbug and will update).

For now, I’m tempted to call MacII_3rd something like ‘C040_MMU_setup‘… but I’d love to have this confirmed  💡 by somebody who knows more than me 😉

Next up will be continuing working further through the main: procedure again… so move over here.

68000, Apple 68k, Carrera040

Carrera in an SE/30 – the code part 1

2 Comments

The disassembled code of the Micromac Carrera 040 control panel is quite big: 6000+ lines of 68030/40 assembly…

While these posts might be entertaining and giving you an insight into classic MacOS driver code, they are also meant as a notebook to myself to get into the source quickly – especially after some weeks or months of distraction 😉

That said, I will not discuss each and every line of code. There are many parts which aren’t important (for now) or just not reached yet.
Still, it will take several parts/chapters to cover everything I worked on.

The complete code is available over here on GitHub and will updated every time I’m working on it.
Whenever I’m mentioning addresses I’m referring to this code on GitHub. NB: I will never use line-numbers as these might change during editing the source.
Also, when you’ll see a light-bulb  💡  somewhere, this is where I’m not sure and happy about enlightenment or comments from you 😉

This article is totally work-in-progress closed.
E.g. every now and then my theories about what a certain code does changes, I learn new things and all the sudden whole blocks of code make sense… so this post will change/grow, too.Bolle did a lot of hardware research and in the end it became clear that the INIT/Driver has nothing to do with the non-function of the Carrera in an SE/30. After Bolle modified his adapter, the Carrera 040 is happily running in my ’30 now.But still, this series of posts is definitely worth reading, especially if you’re into reverse engineering 68k assembly code.

Approaching… difficulties.

What’s the main job of this code? From a 30000ft perspective the simple answer is “switching the Carrera040 on and off”, i.e. toggling between the hosts slower on-board 68030 and the insanely fast 68040 on the C040. At boot-time… as well as during the system is running (by user interaction).

Sounds pretty simple, huh? Lowering our flight altitude to 3000ft more things come into play:
Identify the hosting Macintosh. As mentioned in the previous chapter, the C040 was able to run in a Mac II, IIx, IIcx, IIvx, IIvi, IIvm, IIsi, IIci, LC and LCII… all of them different in many places. These differences have to be handled…
Down at 30ft we have to admit that there are differences between a 68030 and his younger brother 68040, mainly concerning caches, FPU and the MMU.
Finally hitting the ground, it’s becoming clear that it is everything but trivial to halt a running processor, save its complete context and start another (slightly different) processor with that. And back again…

Some given things before we start:

  • We will concentrate on the IIx “branch” as this machine is closest to the SE/30 like not-32bit-clean, memory-map, the GLUE chip, two real VIAs with the same register layout etc.
  • I learned from the code that the C040 is memory-mapped at 0x53000000 in some of the supported models, especially the IIx and IIci. This means 32bit addressing is a must (-> need “mode32” INIT or clean ROM)
  • I tried to comment as much as possible/understood inline (i.e in the code) – a good bit of 68k machine language knowledge is still required 😉
  • If something needs more explanation, I’ll try to provide this before the code quote or afterwards.

So this is the main routine (at 0x21FC):

main     MOVEM.L A4-A6,-(A7)
         MOVE.L  D0,D7
         MOVE.L  #$31E,D0    ; need 798 bytes
         _NewPtr ,CL_SY      ; allocate requested amount of memory (D0) in system
                             ; heap (returned in A0) and initialize to zeroes
         TST     D0          ; success?
         BNE.S   lae_6       ; nope, exit.
         LEA     data2,A1    ; else
         MOVE.L  A0,(A1) ; Init A5 world and save into data2
         MOVEA.L A0,A5
         MOVE    #$A89F,D0   ; UnimplTrap
         _GetTrapAddress     ; (D0/trapNum:Word):A0\ProcPtr
         MOVE.L  A0,$29C(A5) ; save the trap addr into 2 places
         MOVE.L  A0,$2A0(A5) ; in the A5 world
         BSR     sysDetect   ; Jump to Machine detection routine
         BNE.S   lae_6       ; success?
         MOVE.L  D7,D0
         JSR     4(A6)       ; We jump to the subroutine set in the detection routine
                             ; for the second time, this time offset 4...
			     ; i.e. we skip the 1st 'BRA' there
         BNE.S   lae_6       ; success?
         BSR     instFPSP    ; Install Motos FPSP
         BNE.S   lae_6       ; success?
         JSR     8(A6)       ; That's the 3rd call in the handler call cascade (needs hack for MacsBug!)
         BNE.S   lae_6       ; success?
         BSR     proc32      ; works (get some RSC strings)
         BSR     proc43      ; install traps
         BNE.S   lae_6       ; success?
         JSR     12(A6)      ; That's the 4th call in the handler call cascade
         BNE.S   lae_6       ; success?
         BSR     proc41      ; works (atalk?)
         BSR     proc42      ; VIA stuff and such - BOOM
         BSR     proc29
         MOVEM.L (A7)+,A4-A6
         MOVEQ   #0,D0

As you can see, there are 10 calls to subroutines- currently it crashes inside the 8th subroutine, currently called proc42… But let’s check these subroutines one by one.

sysDetect

This is the subroutine I had to “patch” to initially make the driver work with an SE/30. It starts at 0x2022 and does these things:

  • Check if the ‘Gestalt‘ trap is available at all (very good style!) else throw an error
  • If it is, read the machines Gestalt code into D0, throw an error if zero
  • Decide which ‘handler’ to choose given the Gestalt code.

Based on their Gestalt codes there are four groups of Macs defined in the following lines (0x204C – 0x20AC):

  • Mac II/IIx/IIcx — “dirty Macs”, not 32bit clean, no PDS
    • “Expansion I/O Space” from 0x51000000 to 0x5FFFFFFF
    •  the C040 installs with an adapter right into the CPU socket in the II/IIx/IIcx
    • SE/30 is also “dirty”, need mode32 or IIsi ROM in slot
    • these machines also use the GLUE chip to emulate the VIA2 like the SE/30
  • Mac IIvx, IIvi, IIvm — special kind of PDS slot
    • there’s no mentioning of support on the MicroMac page
  • Mac IIsi, IIci
    • Kind of interesting because the si has the same PDS slot like the SE/30
    • Uses the RBV (Ram Based Video) controller which emulates the VIA2
    • Therefore totally different memory layout (VRAM at 0x00000000 mapped by the MMU etc.)
  • Mac LC, LCII, Color Classic
    • These share the same LC-PDS slot

If your Mac is one of those (or patched at 0x2058), you’ll branch into sys_check: (0x20BA) which will make sure you run at least System 6.0.5, have virtual memory switched off and jumps into the selected handler code (address saved in A6) at 0x20EA  for the first time.

Here’s the code of what’s discussed above:

2022: sysDetect: MOVE.L  #$A0AD,D0  ; Gestalt
2028:         _GetTrapAddress newOS ; (D0/trapNum:Word):A0\ProcPtr
202A:         MOVE.L  A0,D2
202C:         MOVE.L  #$A89F,D0     ; UnimplTrap
2032:         _GetTrapAddress newTool; (D0/trapNum:Word):A0\ProcPtr
2034:         CMP.L   A0,D2
2036:         BEQ     OS_bad
203A:         MOVE.L  #'mach',D0
2040:         _Gestalt ; (A0/selector:OSType):D0\OSErr
2042:         BNE     bad_conf      ; If we can't read it, fire general Error Msg
2046:         MOVE.L  A0,D0
2048:         MOVE.L  D0,2(A5)

; Check for several Mac models which are grouped into 3, each having its own handler routine.
; 1) Mac II/IIx/IIcx
; 2) IIvx, IIvi, IIvm
; 3) IIsi, IIci
; 4) LC, LCII, Color Classic

204C:         LEA     MacII_handler,A6   ; -- The dirty gang
2050:         CMPI.L  #6,D0        ; MacII
2056:         BEQ.S   sys_check
2058:         CMPI.L  #7,D0        ; MacIIx - we replace this by the SE/30 #9
205E:         BEQ.S   sys_check
2060:         CMPI.L  #8,D0        ; IIcx
2066:         BEQ.S   sys_check

2068:         LEA     V_handler,A6   ; -- The "V" Macs.
206C:         CMPI.L  #48,D0       ; IIvx
2072:         BEQ.S   sys_check
2074:         CMPI.L  #44,D0       ; IIvi
207A:         BEQ.S   sys_check
207C:         CMPI.L  #45,D0       ; IIvm
2082:         BEQ.S   sys_check

2084:         LEA     IIci_handler,A6   ; -- IIci and IIsi
                                        ; BOTH share the same "Expansion I/O Space" (0x5300 0000)
2088:         CMPI.L  #11,D0       ; IIci
208E:         BEQ.S   sys_check
2090:         CMPI.L  #18,D0       ; IIsi
2096:         BEQ.S   sys_check

2098:         LEA     LC_handler,A6    ; -- The LC-PDS family
209C:         CMPI.L  #19,D0       ; LC
20A2:         BEQ.S   sys_check
20A4:         CMPI.L  #37,D0       ; LCII
20AA:         BEQ.S   sys_check
20AC:         CMPI.L  #49,D0       ; Color Classic
20B2:         BEQ.S   sys_check

; Any other Model/Gestalt will bring up an error alert-box

20B4:         MOVE    #$1B5B,D0    ; "Carrera040 does not support this Macintosh model."
20B8:         BRA.S   RET_err      ; -> "TST     D0 & RTS"

; We found a supported model, so keep on going checking for the OS version...

20BA: sys_check: MOVE.L  #'sysv',D0    ; Check OS version
20C0:         _Gestalt              ; (A0/selector:OSType):D0\OSErr
20C2:         BNE.S   bad_conf      ; If we can't read it, fire general Error Msg
20C4:         MOVE.L  A0,D0
20C6:         CMPI    #$605,D0     ; System 6.0.5
20CA:         BGE.S   OS_ok        ; or greater
20CC: OS_bad: MOVE    #$1B5C,D0    ; "Carrera040 does not work with this version of the operating system."
20D0:         BRA.S   RET_err      ;
20D2: OS_ok:  MOVE.L  #'vm  ',D0   ; Check for enabled Virtual Memory
20D8:         _Gestalt             ; (A0/selector:OSType):D0\OSErr
20DA:         BNE.S   bad_conf     ; If we can't read it, fire general Error Msg
20DC:         MOVE.L  A0,D0
20DE:         BTST    #0,D0
20E2:         BEQ.S   VM_ok
20E4:         MOVE    #$1B5D,D0    ; "Carrera040 does not work with Virtual Memory turned on.
                                   ; Please turn off Virtual Memory in the Memory control panel and restart your Mac."
20E8:         BRA.S   RET_err
20EA: VM_ok:  JSR     (A6)         ; This is the actual HANDLER CALL, been set in $204C-$2098
20EC:         BNE.S   RET_err
20EE:         MOVE.B  34(A5),D0    ; 34(A5) seems to contanin the Jumper settings at the lowest 3 bits and only three of them are valid:
20F2:         CMPI.B  #7,D0        ; 7 -> 111
20F6:         BEQ.S   RET_ok
20F8:         CMPI.B  #6,D0        ; 6 -> 110
20FC:         BEQ.S   RET_ok
20FE:         CMPI.B  #5,D0        ; and 5 -> 101
2102:         BEQ.S   RET_ok
2104:         MOVE    #$1B5E,D0    ; "Carrera040 does not recognize the jumper settings on the Speedster card.
                                   ; Please check the settings against the manual.
2108:         BRA.S   RET_err
210A: RET_ok: MOVEQ   #0,D0        ; clear D0 (no errors)
210C:RET_err: TST     D0           ; Set the Z-Flag (D0 contains Err-Code) and
210E:         RTS                  ; return from Subroutine
2110:bad_conf:MOVE    #$1B5A,D0    ; "Carrera040 does not support your system configuration."
2114:         BRA     RET_err

Yes, there’s also stuff after the call to the handler, but let’s check that handler first.
As said in the beginning, I chose to take the “IIx route”. The MacII_handler code is actually just another vector jump-table which will later be used with offsets:

414E:  MacII_handler:  BRA   MacII_1st ; From II, IIx & IIcx
4152:                  BRA     MacII_2nd
4156:                  BRA     MacII_3rd
415A:                  BRA     MacII_4th

Let’s have a look into the first call MacII_1st:

3D14:  MacII_1st  MOVEM.L D1-D3/A0-A2/A6,-(A7) ; 1st call from MacII handler
3D18:           PUSH.L  8
3D1C:           LEA     data105,A0
3D20:           MOVE.L  A0,8       ; Is that the Bus Error Handler at 0x00000008?
3D24:           MOVE    #$1B5F,D3  ; 7007
3D28:           MOVEQ   #1,D0
3D2A:           _SwapMMUMode
3D2C:           PUSH.B  D0
3D2E:           MOVEA.L A7,A6
3D30:           BSR     read_5300k2
3D34:           MOVEQ   #0,D3
3D36:  data105  MOVEA.L A6,A7
3D38:           POP.B   D0
3D3A:           _SwapMMUMode
3D3C:           POP.L   8
3D40:           MOVEQ   #0,D0   ; ?
3D42:           MOVE    D3,D0   ; overwriting?
3D44:           BNE.S   lae_153
3D46:           MOVEM.L D1-D2/A0-A2,-(A7)
3D4A:           LEA     53_cmd_0,A0
3D4E:           MOVE.L  A0,6(A5)
3D52:           LEA     53_cmd_1x,A0
3D56:           MOVE.L  A0,10(A5)
3D5A:           LEA     read_5300k2,A0
3D5E:           MOVE.L  A0,14(A5)
3D62:           LEA     53_cmd_5.3,A0
3D66:           MOVE.L  A0,18(A5)
3D6A:           LEA     53_cmd_5.1,A0
3D6E:           MOVE.L  A0,26(A5)
3D72:           LEA     53_cmd_5.3.5.1,A0
3D76:           MOVE.L  A0,22(A5)
3D7A:           MOVEM.L (A7)+,D1-D2/A0-A2
3D7E:           BSR     read_5300k2
3D82:           ANDI.B  #7,D0
3D86:           MOVE.B  D0,34(A5)
3D8A:           MOVEQ   #0,D0
3D8C:  lae_153: MOVEM.L (A7)+,D1-D3/A0-A2/A6
3D90:           TST     D0
3D92:           RTS

As you can see, even in such simple and short subroutines are some things I just don’t get? For example why is the effective address of data105 written to 0x8? Is that replacing the Error Handler in the VBR?
Anyhow, I think I got the overall meaning of the rest of it. What happens is this:

After switching into 32bit mode (_SwapMMUMode) it reads a longword from 0x53000000. As initially mentioned, the C040 is mapped to this address. There are 2 identical functions to read from there, that’s why this one here called read_5300k2.
It looks like reading is sufficient because the result (returned in D7) is immediately overwritten by a pop. Also that BNE after two moves is beyond me (0x3D40)…  OTOH the rest of the code is pretty clear: It’s ‘populating’ the A5-world with subroutines I’d call 53-commands. These commands write a specific byte sequence to 0x53000000, obviously communicating with the C040. For better understanding I’ve named them e.g. 53_cmd_5.3.5.1 meaning writing 5, then 3, then 5 and finally 1 to this address.
At the end, 0x5300k is read again, this time the result is masked to the last bit and written to 34(A5) – this represents the C040 jumper-settings by the way.  Return from Subroutine…

Back in sys_check: this jumper-setting will be checked immediately for three valid settings: 111, 110 or 101 representing the supported CPU types (68040,68LC040,68EC040). If the setting is ok we’re done with sysDetect:and return to main:.

2nd handler

Located at 0x3D94 this is kind of  a ’50/50 subroutine’. One half is totally obvious (check RAM, ROM and addressing mode) and the other half is all greek to me… e.g. what is all that PUSHing about? There’s not a single POP inside this routine (or subroutines call from within).  Here’s a wild guess of mine:
It looks like 1 to 4  ‘RAM range triplets’ being pushed onto the stack and after that gestaltPhysicalRAMSize (#’ram ‘) is called, for example:

    3D9A:          CLR.L   -(A7) ; faster 'PUSH.L #00000000'
    3D9C:          CLR.L   -(A7) ; PUSH.L #00000000
    3D9E:          CLR.L   -(A7) ; PUSH.L #00000000

    3DA0:          PUSH.L  #$100000
    3DA6:          PUSH.L  #$50F00041
    3DAC:          PUSH.L  #$50F00000

    3DB2:          PUSH.L  #$2000
    3DB8:          PUSH.L  #$53000041
    3DBE:          PUSH.L  #$53000000

    3DC4:          PUSH.L  #$2000
    3DCA:          PUSH.L  #1
    3DD0:          PUSH.L  #$53002000

    3DD6:         MOVE.L  #'ram ',D0  ; Returns the number of bytes of the physical RAM
    3DDC:         _Gestalt ; (A0/selector:OSType):D0\OSErr

But the gestaltPhysicalRAMSize call does not take parameters and simply returns the amount of available RAM.

The good thing is, this sub-routine works flawlessly on the SE/30 and we can move on…

instFPSP

instFPSP is the next call in line. I’m not going to discuss this code in detail because it actually doesn’t do much. Still there are many inline comments in this routine if you like to know more. Here’s the background:

The FPU in the 68040 was made incapable of IEEE transcendental functions, which had been supported by both the 68881 and 68882 and were used by the popular  fractal generating software of the time and little else.  The Motorola floating point support package (FPSP) emulated these instructions  in software under interrupt. As this was an exception handler, heavy use of  the transcendental functions caused severe performance penalties.

TLDR; Check for FPU(type) and load the FPSP code from the resource-fork into RAM. Done. Return to main:.

Phew, that’s it for now. In the next post/chapter we’ll touch the 3rd handler, which was really hard to decipher but interesting stuff to learn, too.

Apple 68k, DIY Projects

Fixing the Quadra 950 power-supply

4 Comments

One day the power-supply of my beloved Quadra went “bzzzzzt-poof” (sparks flying, smoke rising).
First I was desperate… try to find a Quadra 950 power-supply these days. And if you find one, it’ll cost you the same you’d pay for a complete system… and then you’re still not sure, if it won’t go poof very soon, too.

Then I thought: Hey, why don’t replace the whole thing by something more modern, much cheaper and smaller?!
It’s already been proven with other Mac systems that using a standard PC power-supply (PSU for short) is feasible, so why should a Quadra 950 power-supply be much different?
As there are some descriptions out there – mainly for those “10-pin connectors” (Mac IIcx, vx or PMac family) I thought it might be helpful to have a step-by-step how-to with lots of photos…

We’re interuppting this transmission for a stern word of warning:

Working on/in power supplies is dangerous. I take no responsibility for any damages, injuries or fatal strokes! If you’re unsure if you can do this hack, just don’t do it!

First (obviously), unplug the unit. Leave it unplugged for 15 minutes or so. In most PSUs there are bleeder resistors that will bleed down the stored voltages inside over time BUT THERE ARE NO GUARANTEES!!

When you open the unit, understand that there are two hazards:

  1. Stored high voltage (200V or so) on the “input” side of the unit.
  2. Stored high currents (tens of amps) on the “output” side of the unit.

Either 1 or 2 can be deadly. If you die, it’s social darwinism. You have been warned.

Dismantle

So for the initial try I pulled a cheap ATX power-supply out of my junk-pile (wife-speak for “basement”) and put it next to the original, humongous Supplyzilla created by Apple. Ok, that should fit in 😉

Opening Supplyzilla is another thing. About 10 screws, a cut in my finger and 30 mins of cursing later I found the reason why I wasn’t able to get the two case-parts apart: Don’t forget to unplug the fan cable :-/

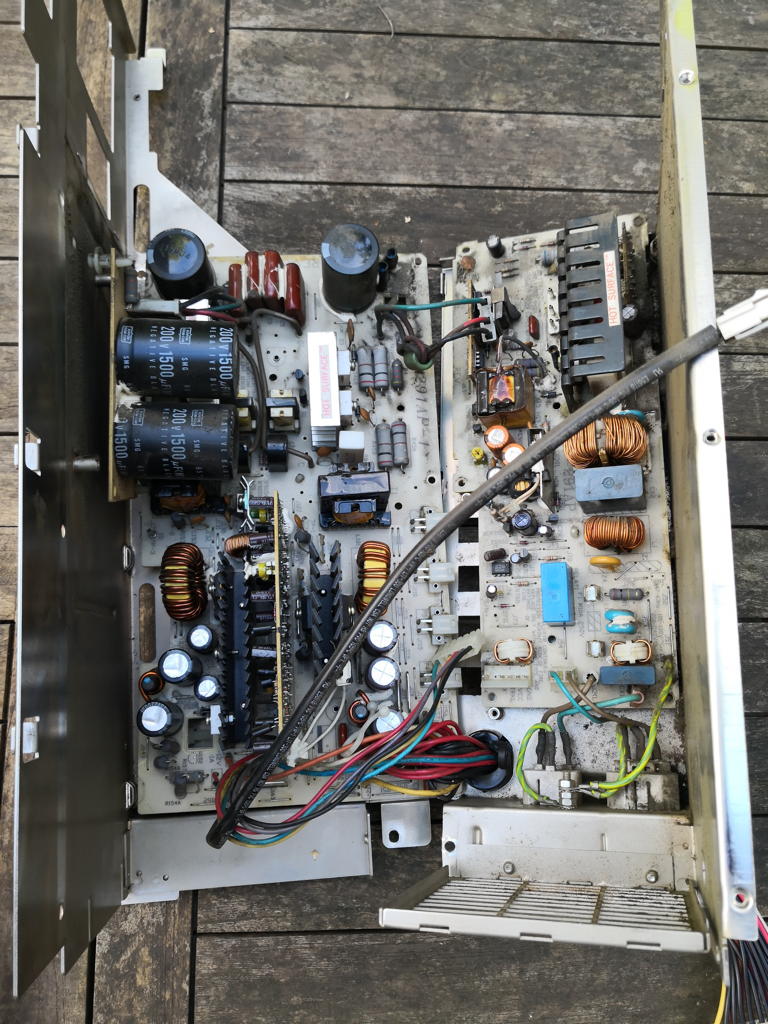

After this you can fold-open the case and have a good view onto huge capacitors, lots of dirt and 1990s tech…

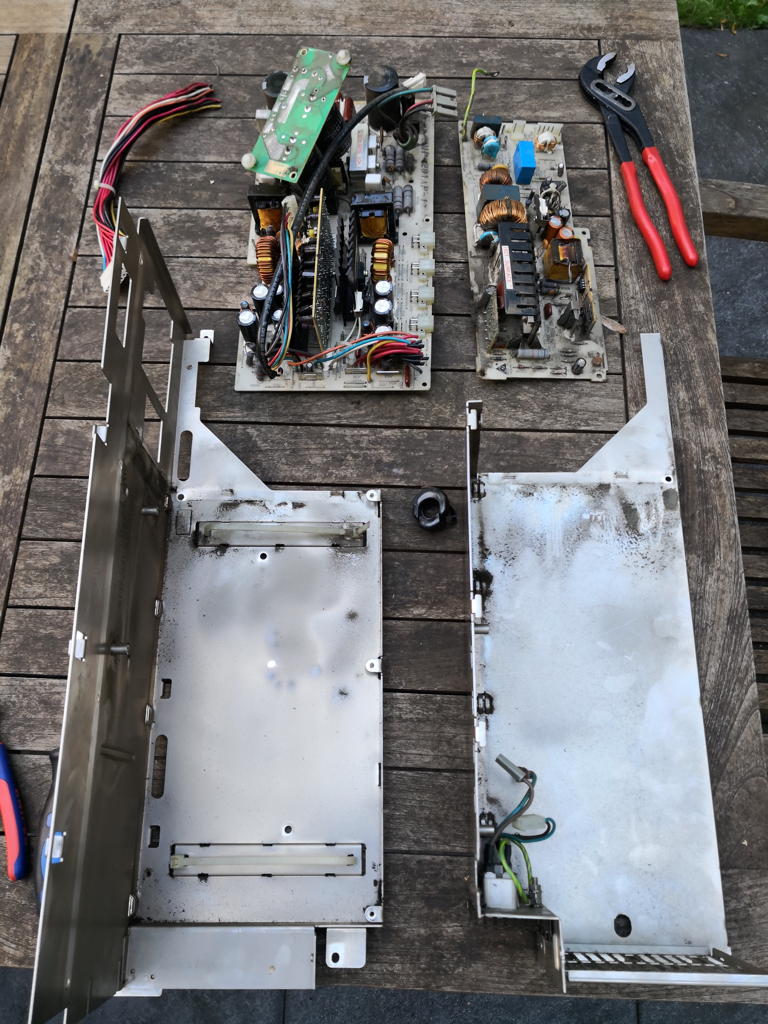

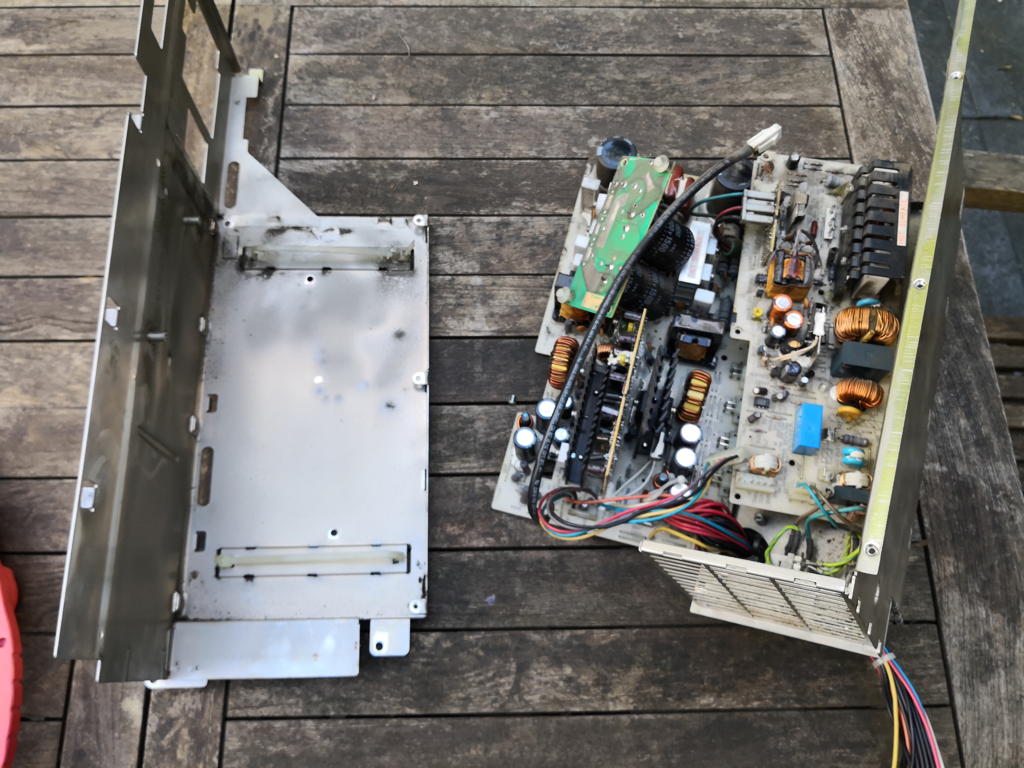

There are two PCBs each mounted to a side of the case. Unscrew and separate them – because mine was dead anyhow (and I wasn’t planning to repair it) separation was easy. Snip!
I wasn’t able to get the external cable-harness leading out of the case. So this was a 2nd snip-snap… I planned to use the original PC cables anyhow. You can reuse the original plug or use the one from the ATX PSU (if it’s a 24pin one).

Here they are… rest in pieces 😛

Fitting room

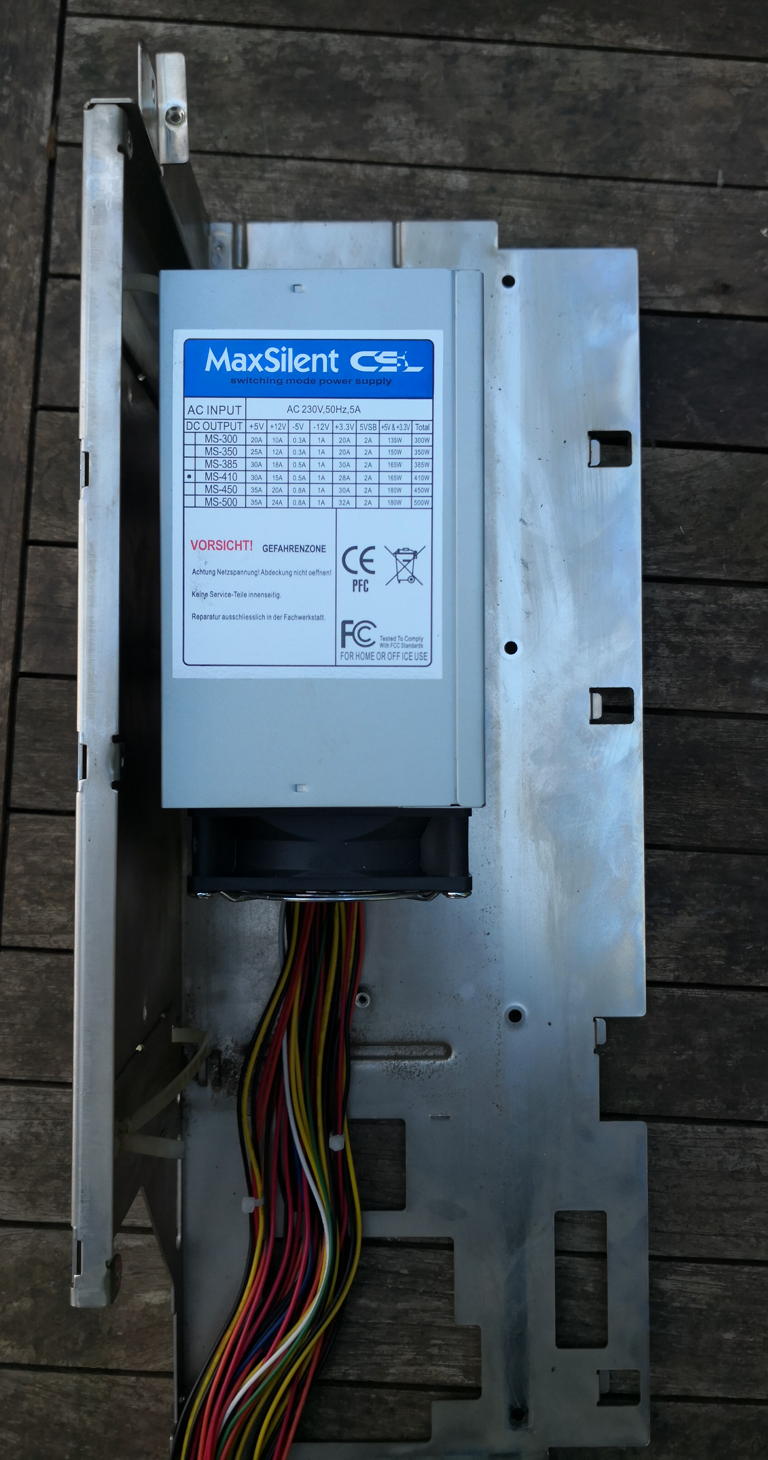

Next up: The first fitting… even still in its enclosure it would nearly fit two times.
BTW: I like the sticker saying in German “VORSICHT! GEFAHRENZONE!” (Caution, danger-zone!) That’s soooo 80’s Top-Gun 😀

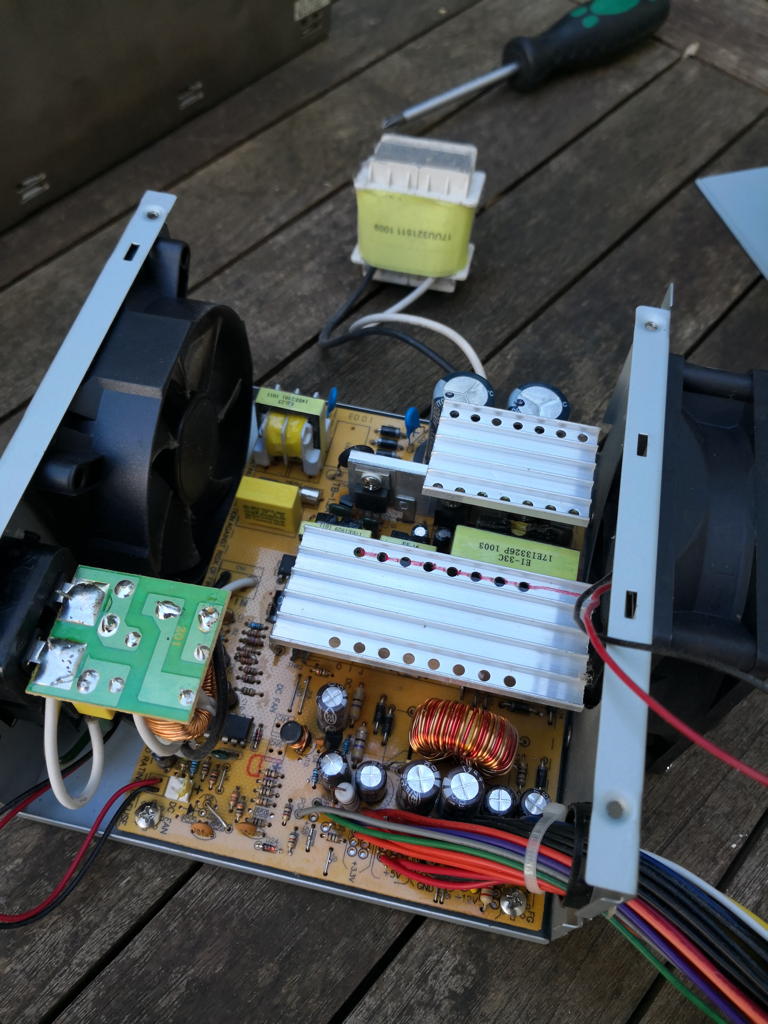

Because we have to modify the ATX PSU, it had to be stripped down, too. Compared to Supplyzilla it’s pretty deserted in there…
Yes, it’s a cheapo one looking at the passive PFC and could have be designed much better, but for the 1st try it’s OK.

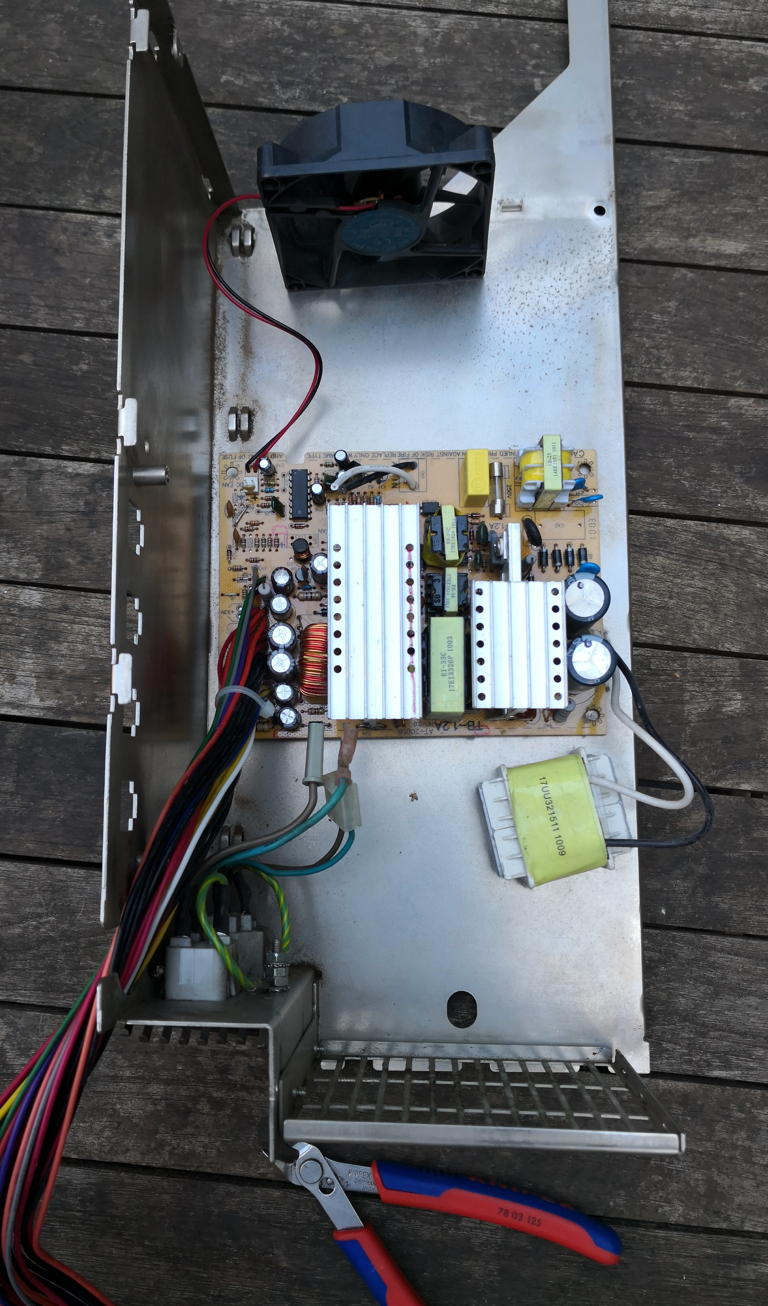

2nd fitting making sure all heatsinks are well placed into the airflow, cables close to outlets (the fan will be replaced by a big one, of course).

You will be assimilated…

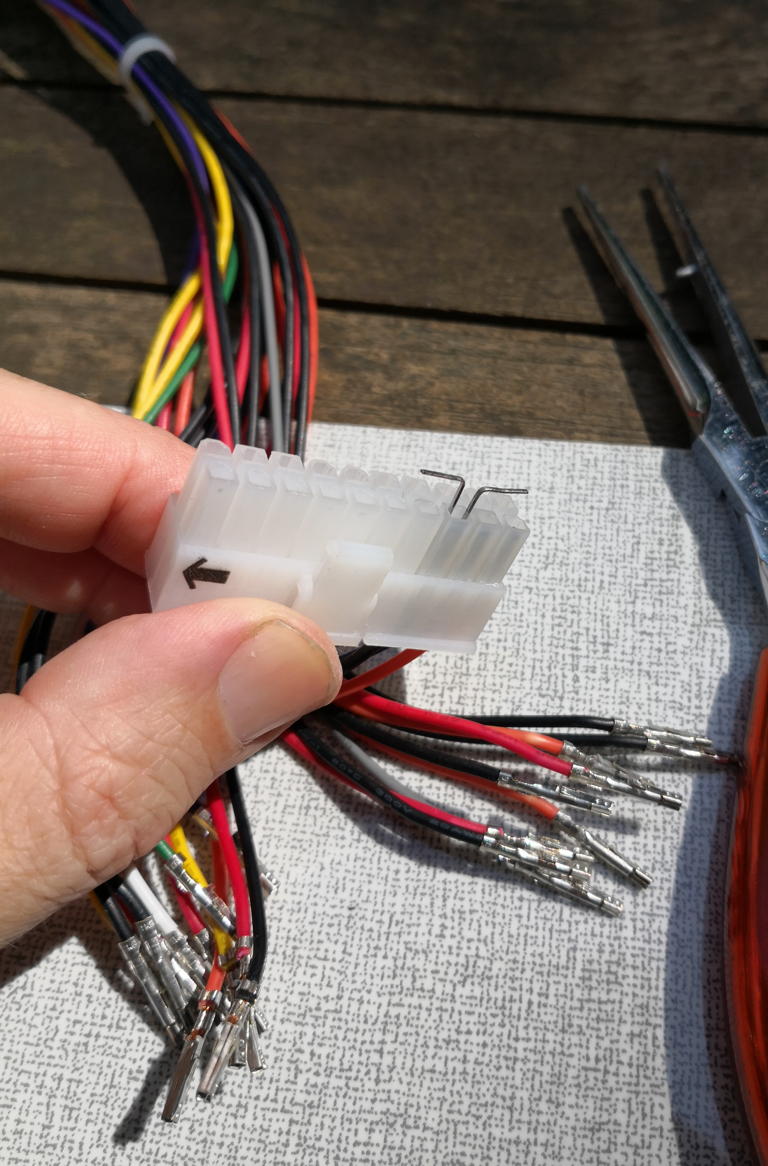

Next step was a meditational one. Loosening all 24 pins clamped into the ATX plug. I used the “cut staple method”. One to the left, one to the right, push them in, pull the cable… repeat.
Configuration of the Q950 plug will be described further down. I suggest to do this as one of the last steps. For now just tape all loosened pins together to save them from bending.

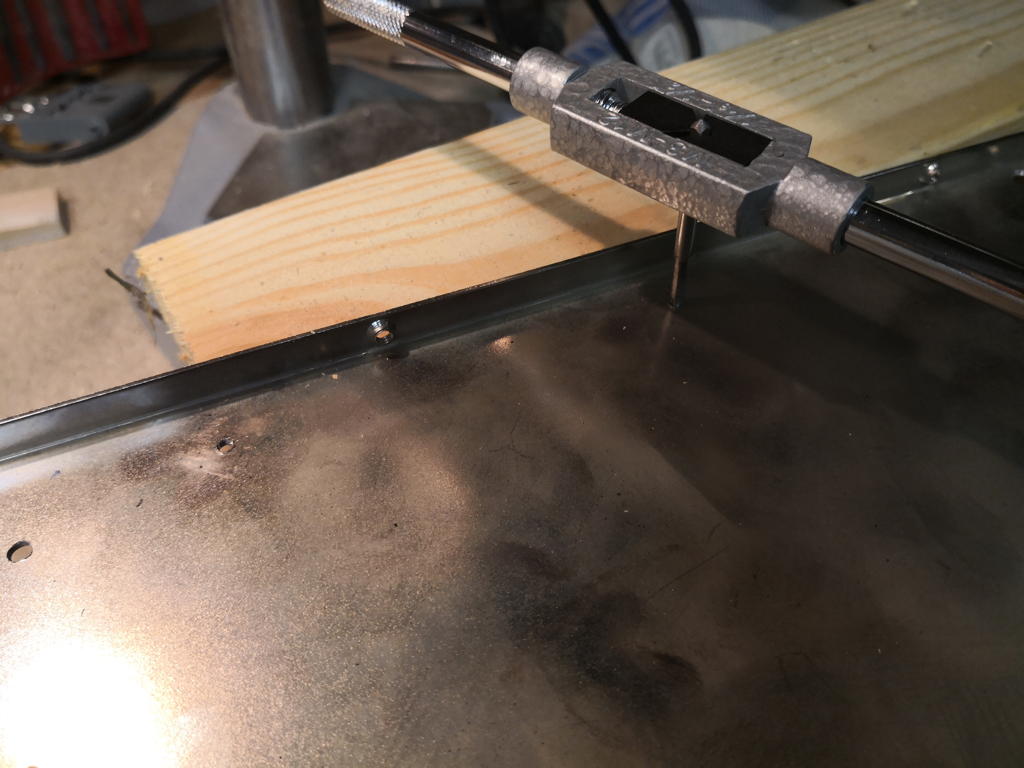

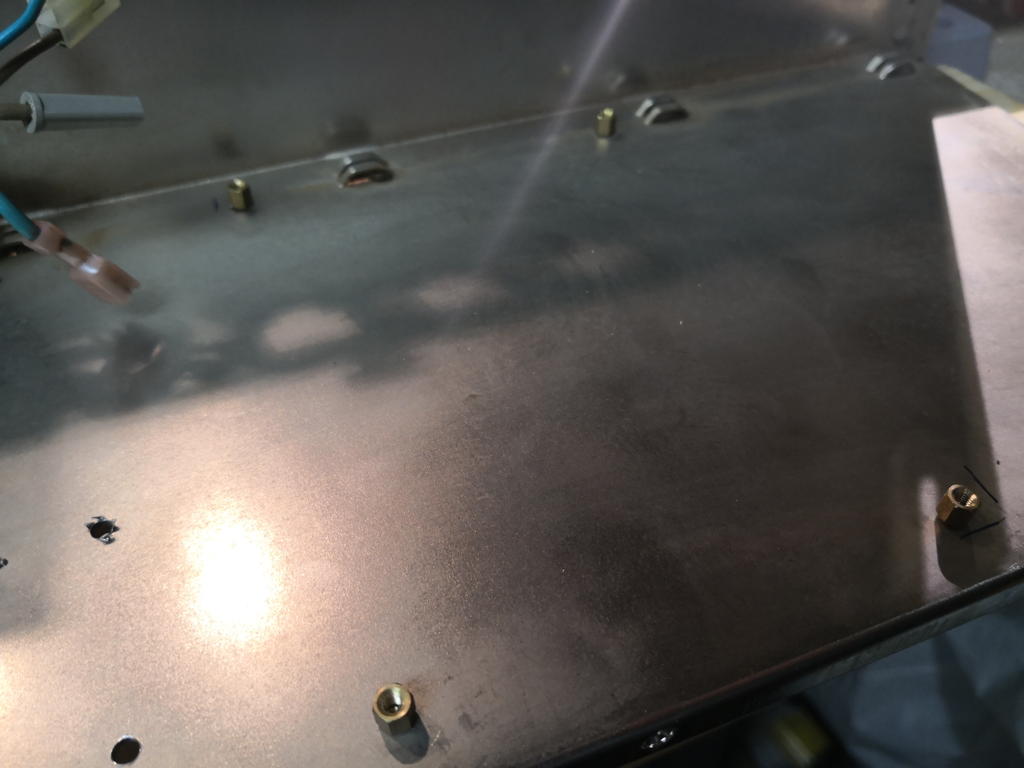

Having the preparations done, it was on to the workshop drilling some holes and cutting screw threads (optional but nicer than holes and nuts)…

…to have a proper seating for the stand-offs. We don’t want the PCB touch the case, don’t we?

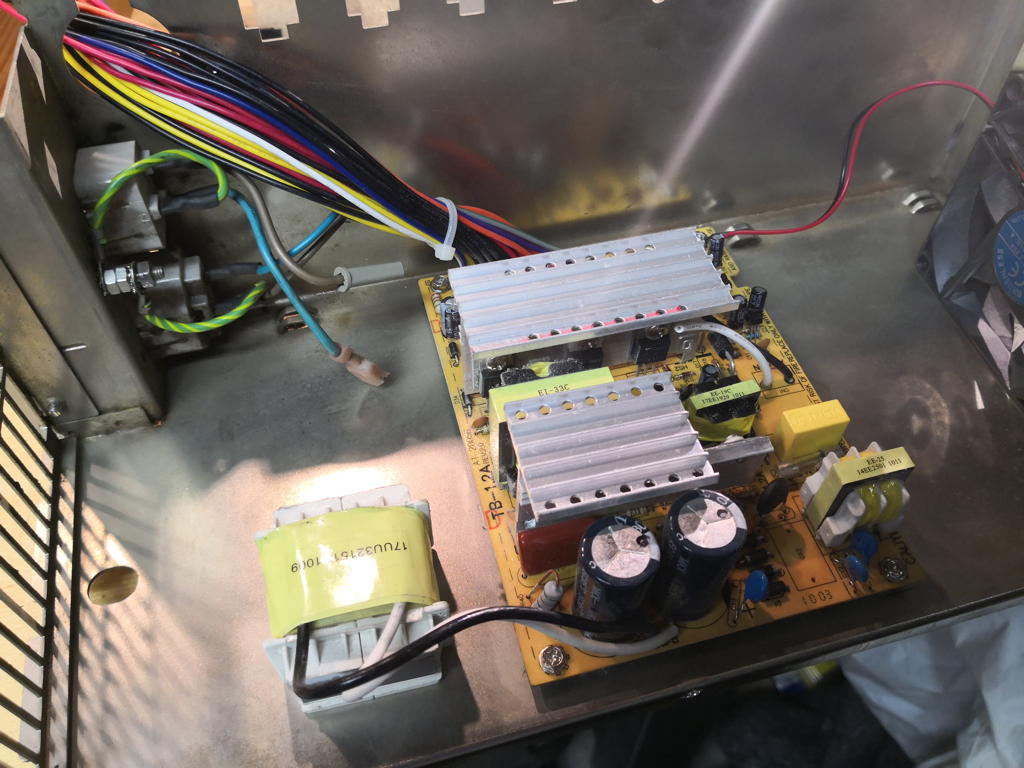

All fits nicely. The PFC screwed to the case like in its original habitat – ugly, but will do for now.

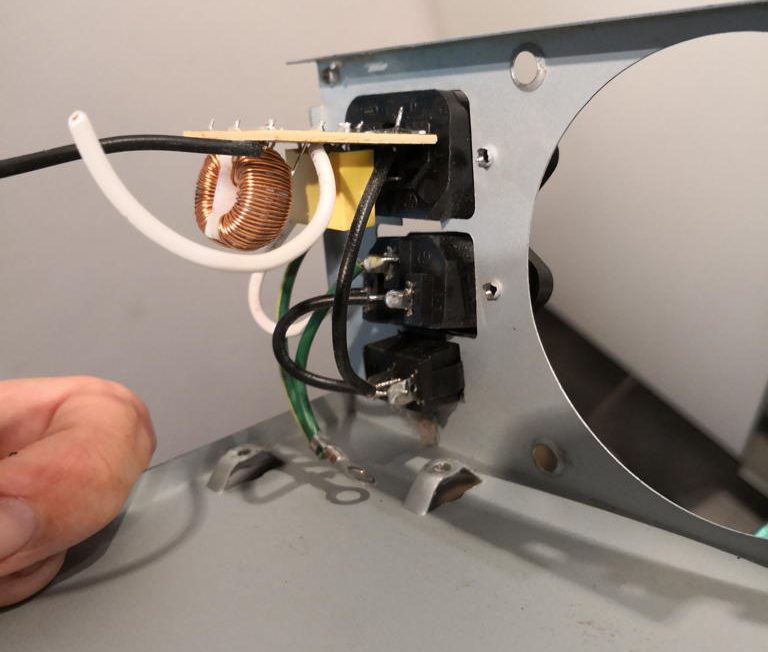

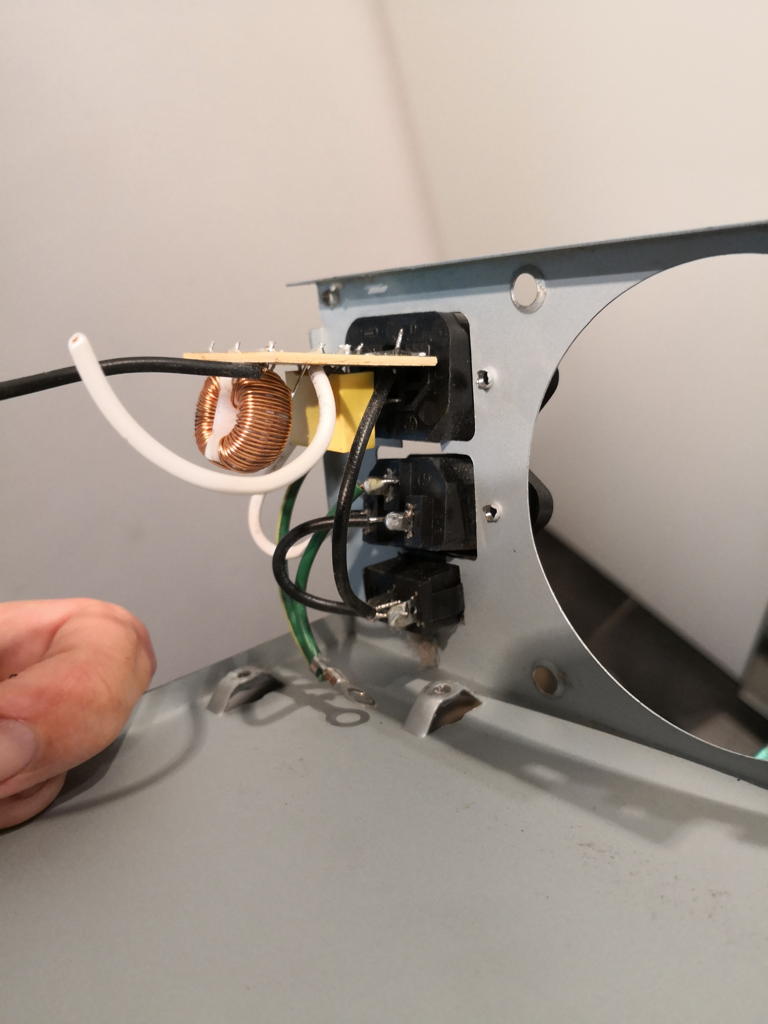

The noise filter was directly soldered to the power-out plug. Again ugly, unprofessional but OK for a try.

So the filter went into the case and unneeded cables like 3V, were shortended and kept inside the power-supply.

Connecting the dots

Now for the plug-configuration. All documentation I’ve found on the web were wrong – dead-wrong, even leading to drama…

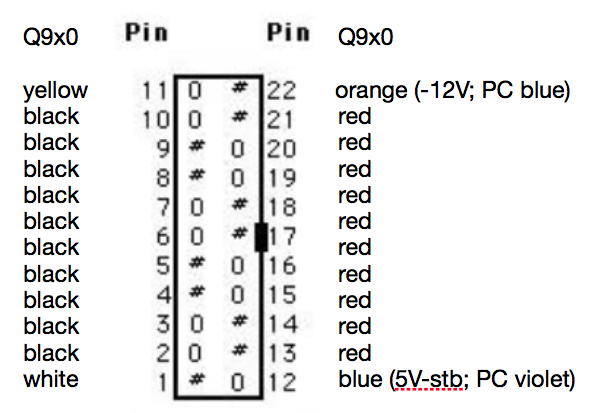

So this is the correct pinout for Quadra 900/950’s:

Having this, the mapping from the “Mac-plug” to your ATX-PSUs cables is pretty straightforward:

  • Red (5 volts) stays red
  • Black (Ground) stays black
  • Yellow (+12V) also stays that way, too
  • Orange (-12) is blue in your ATX-PSU
  • Blue (5V standby) is the violet cable in ATX-PSUs
  • White is mostly unused on ATX-PSUs – we will recycle that cable for PFW…

As for 5V/GND wires don’t worry if your ATX PSU doesn’t offer enough of them (10 each). Mine just had five 5V wires, so I populated every 2nd slot in the plug.

Killing me softly

Finally the ‘circuit’ for using the Quadras soft-power feature had to be implemented – a simple rocker-switch connecting the green (Pwr_on) wire to GND would do, but this is just so below the mighty Quadras grandeur.
I opted for the very simple, more reasonable solution using a NPN-resistor… even a 74LS04 is an overkill in this case. Just my 2ct, though.

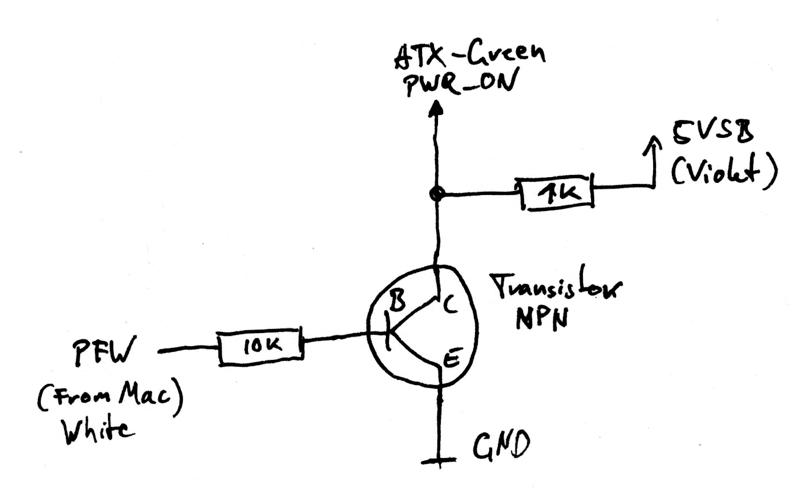

This is the schematic, nothing spectacular:

Yeah, the symbols for the resistors are European, that’s because… well, I am European 😉 As for the transistor use any NPN you can get easily. E.g. BC547 or BC549 (again, European numbering scheme, you’ll have to figure out JEDEC names if needed).

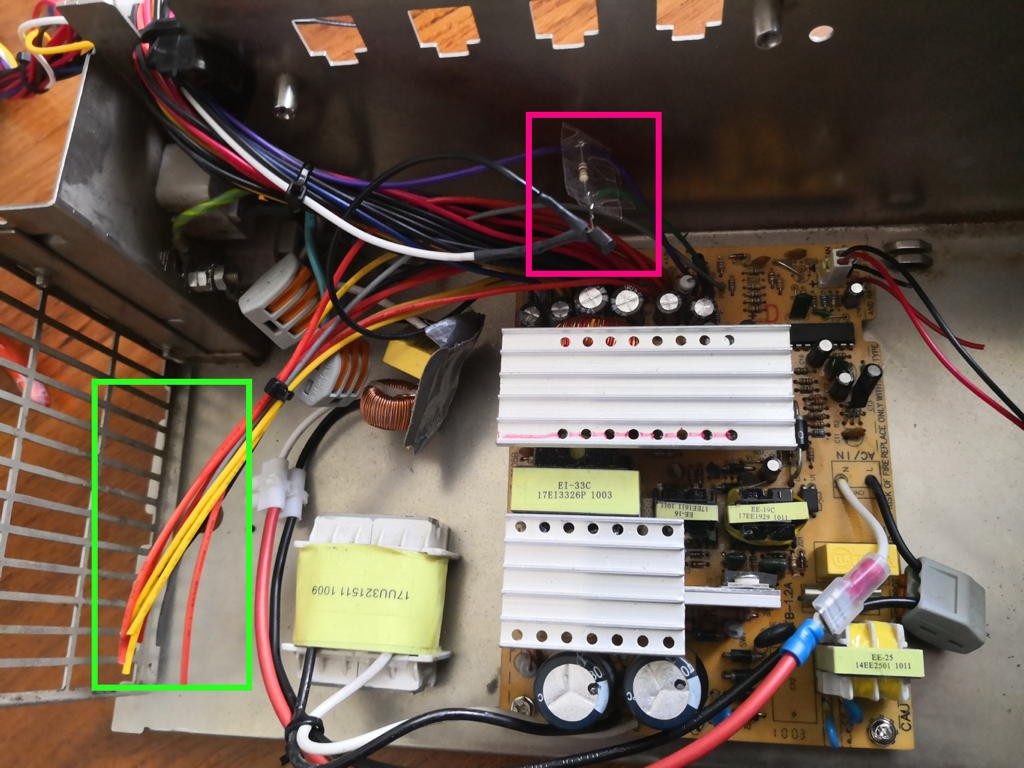

And here’s the PSU before its going to be closed and put back into my Q950.
Pink box: The soft-power ‘circuit’ (yeah, I was too lazy to create a PCB for a transistor and two resistors).
Green box: Unneeded cables been cut (3V, extra 12V, pwr_good).

Everything else was routed outside (All 5V/GND, +12V, -12V, 5V_tickle and the white cable was cut and reused for PFW.

Hints: DON’T use the GND from fan-connectors! They might be modulated to control the fan speed and other wired things. Better use one of the e.g. unused 12V cable-pairs.
Check everything before closing the case – Again CAUTION!!! High voltage. You touch, you die!!

Woo-hoo! Lady Quadra works again!

Outlook

That was a cheap fix… about $5 in parts if you have to buy a used ATX PSU. To make things easier and look more professional I plan to design a small PCB which fits right where one of the original PSU PCBs sat, providing the 4 drive connectors (4-pin) so that you can keep using the original drive power-cables. Also I plan to add:

  • the soft-power circuit
  • a temperature fan speed controller
  • (optional) internal 5¼” power-connectors for solder-free connection to the external 4pin connectors.
